Netlink 90 HX PET
Netlink 90 HX PET

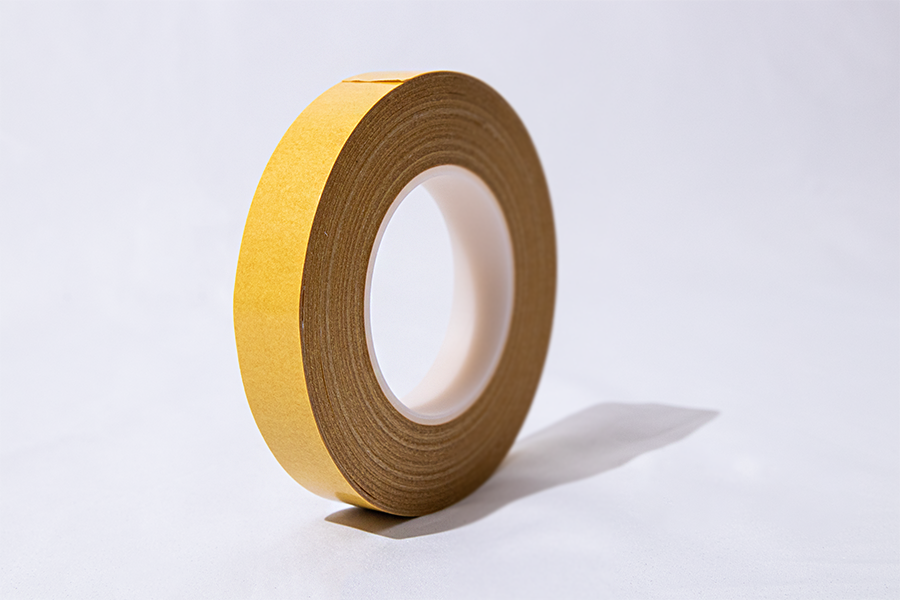

Netlink 90 HX – Scrim-Reinforced Double-Sided Transfer Tape
Netlink 90 HX (also searched as Netlink90HX or HX90) is a high-quality, double-sided transfer adhesive from the Saint-Gobain Biolink range. It has a polyester scrim embedded in it for reinforcement. The scrim gives the aggressive modified-acrylic adhesive good dimensional stability without losing conformability. That makes it a strong choice for laminating, fixing and mounting structured or rough-surfaced substrates, where the tape mustn’t stretch during converting or final application. Biolink Australia keeps plenty of Netlink 90 HX in stock at all times and ships Australia-wide to converters, fabricators and manufacturers.
Key features
- Polyester scrim reinforcement for dimensional stability and easier converting
- Outstanding immediate tack
- Excellent wetting properties, including on textured surfaces
- Bonds low surface energy (LSE) plastics as well as foams, rubber and EPDM
- Good ageing resistance
- Wide service temperature range: −40 °C to +80 °C, short term up to +120 °C
Applications
- Foam lamination, including adhesive-backing foams for gaskets and seals
- Film and foil lamination
- Bonding rubber and EPDM profiles
- Fixing and mounting onto plastics, including PP and PE
- Laminating rough or structured substrates where stretch must be avoided
- Bonding in the construction sector
Technical data
| Property | Value | Test method |
|---|---|---|
| Article number | 3366 | – |
| Construction | Double-sided transfer adhesive with white polyester scrim | – |
| Adhesive | Modified acrylic, transparent (coat weight 95 g/m²) | – |
| Liner | PET | – |
| Thickness (excl. liner) | 90 micron (0.09 mm) | – |
| 180° peel adhesion, 20 °C | Steel 33 · Aluminium 31 · Glass 32 · PMMA 32 · PVC 31 · PP 30 · PE 17 N/25 mm | AFERA 5001 |
| Static shear (cohesion), 20 °C | 5 N/625 mm² | AFERA 5012 |
| Operating temperature | −40 °C to +80 °C; short term up to +120 °C | – |
| Application temperature | 15 °C to 40 °C | – |
| Shelf life | Approx. 12 months stored at about 20 °C and 50% RH | – |
Typical values only, not for specification. Values on steel, aluminium, glass, PMMA, PVC and PP showed cohesive failure.
Sizes, slitting and die-cutting
We keep master logs of 1020 mm × 50 m in stock and can slit to any width from 6 mm up to 1020 mm. Die-cutting is also available, so we can supply finished parts to your drawing. Tell us your application and we’ll recommend the right format.
How to apply
- Make sure the surfaces are clean, dry and free of oil, grease, dust and dirt. Isopropyl alcohol is recommended for cleaning.
- Apply between 15 °C and 40 °C. Below 15 °C the adhesive may not bond well.
- Apply firm, even pressure (100–150 kPa) for full contact.
- Allow bond strength to build. Final adhesion is typically reached after 72 hours, and heating above 40 °C speeds this up.
- Always test in your own application before production use.
Downloads
Frequently asked questions
What is Netlink 90 HX used for?
Fixing, mounting and laminating foams, low surface energy plastics, rubber, EPDM and films. The scrim makes it ideal where the tape mustn’t stretch.
How thick is Netlink 90 HX?
90 micron (0.09 mm), excluding liner.
What temperatures can it handle?
−40 °C to +80 °C continuously, and up to +120 °C for short periods.
Does it stick to PP and PE?
Yes. Typical peel adhesion is 30 N/25 mm on PP and 17 N/25 mm on PE. Test in your application first.
How long until it reaches full strength?
Typically 72 hours. Heating above 40 °C speeds this up.
Can I get it slit or die-cut?
Yes. We slit any width from 6 mm to 1020 mm from 1020 mm × 50 m master logs, and die-cutting is available. Send us your sizes or drawing.
Do you keep it in stock?
Yes. We keep plenty in stock at all times and ship Australia-wide.
Get a quote
Talk to Biolink Australia about Netlink 90 HX for your next job. Call (03) 9466 9669 or email daniel@biolinkaus.com.au for pricing, samples [CONFIRM: samples offered] and technical advice.
Tape Construction
Tape Thickness
Adhesion [N/25mm] In accordance to AFERA 5001
| steel | 33 |
| aluminium | 31 |
| glass | 32 |
| PMMA | 32 |
| PVC | 31 |
| PP | 30 |
| PE | 17 |
Cohesion [N/625mm²] In accordance to AFERA 5012
| 20°C | 5 |
