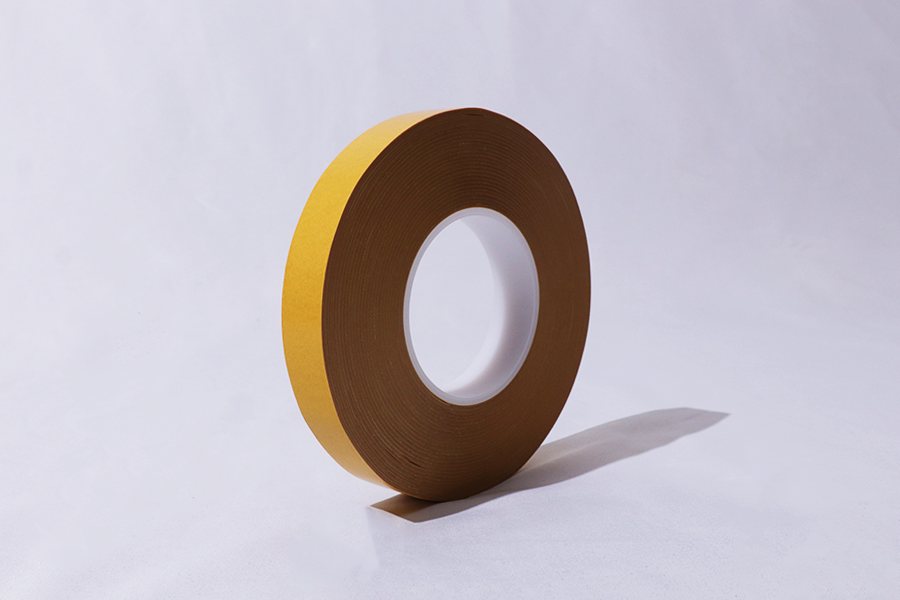

Unilink 220 H+
Unilink 220 H+
Unilink 220 H+ is a double sided adhesive tape with a PVC film carrier. The solution for laminating a variety of substrates with smooth and rough or structured surfaces. The pvc based carrier guarantees a good dimensional stability.
Tape Construction
Siliconpaper, yellow, both sides silicone coated, weight: 90 g/m² Thickness: 70μm, modified acrylate coat weight: 100 g/m², PVC film, white, thickness: 40 μm, modified acrylate, coat weight: 100 g/m²
Tape Thickness
approx. 0,24 mm excl. liner
Adhesion [N/25mm] In accordance to AFERA 5001
| steel | 32 |
| aluminium | 31 |
| glass | 32 |
| PMMA | 30 |
| PVC | 26 |
| PE | 10 |
| PP | 24 |
| PET | 32 |
| ABS | 30 |
| PC | 27 |
Cohesion [N/625mm²] In accordance to AFERA 5012
| 20°C | 45 |
Temperature Resistance
-40°C to +70°C, short term even up to +90°C
